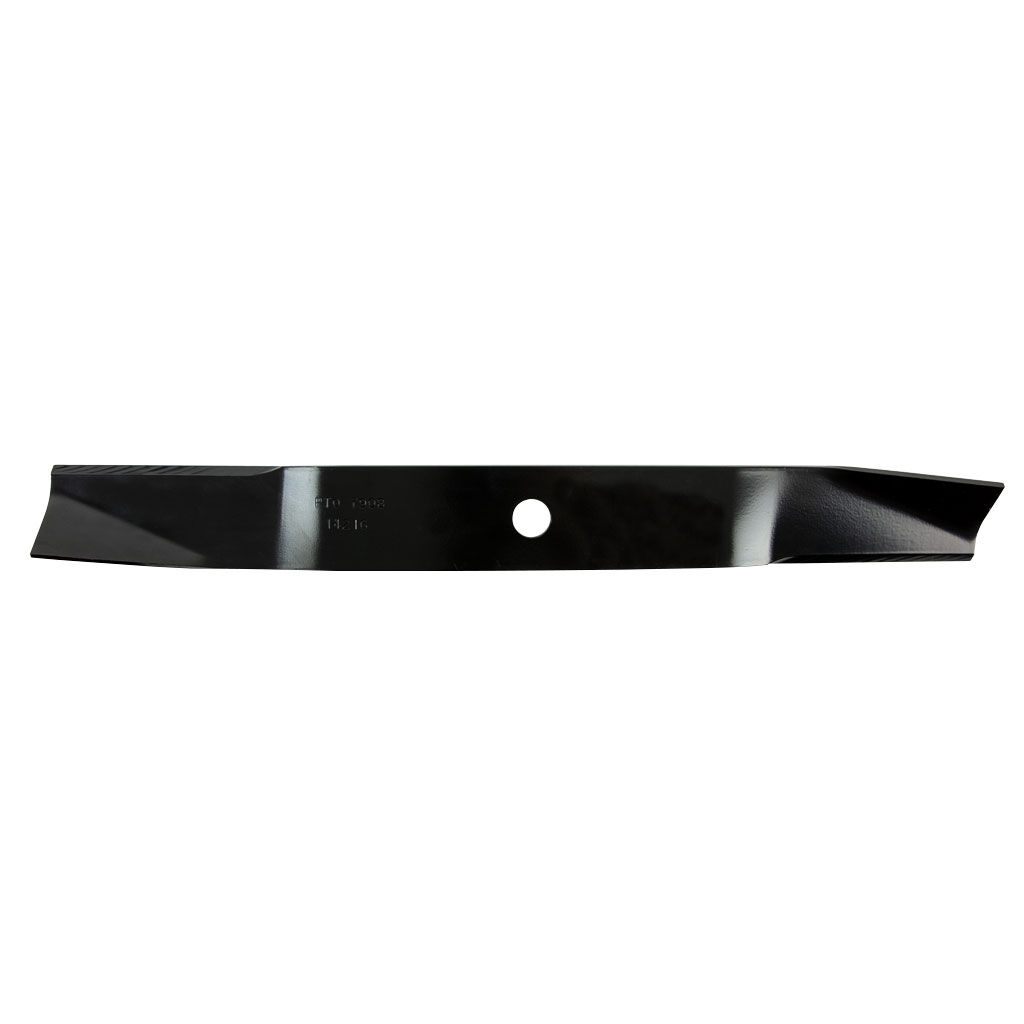

Description:Non-Genuine Craftsman, Murray, Parklander, Simplicity, Snapper, Victa, 42" Cut
Standard Bar Blade
Replaces OEM:Craftsman: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Murray: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Parklander: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Simplicity: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Snapper: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Victa: 1737816, 1737816BM, 1737816BMA,1737816BMYP
Centre Hole Dia. (inches).802"
Centre Hole Dia. (mm)20.37 mm
Deck (inches)42"
Deck (mm)1067 mm
Deck (cm)106 cm
Length: (in):21 3/16"
Length: (mm):538.16 mm
Thickness: (inches).170"
Thickness: (mm)4.318 mm
Width: (inches)2 1/4"
Width: (mm)57.15 mm
Centre Hole Type:Round
Fits:42" (1067 mm) Cut Craftsman CR28006 (model 28006, years 2011 - 2012) zero turn
radius (ZTR) ride-on lawn mower models.
Qty required per unit:2 blades required for 42" cut
Fits:42" (1067 mm) Cut Murray MT175420H (17.5 hp model 2691000, fitted with deck number
1696084, year 2012) ride-on lawn mower models.
Qty required per unit:2 blades required for 42" cut
Fits:42" (1067 mm) Cut Parklander (by Murray) MT175420H (17.5 hp model 2691000, fitted
with deck number 1696084, year 2012) ride-on lawn mower models.
Qty required per unit:2 blades required for 42" cut
Fits:42" (1067 mm) Cut Simplicity selected ride-on lawn mower models.
Qty required per unit:2 blades required for 42" cut
Fits:42" (1067 mm) Cut Snapper selected ride-on lawn mower models.
Qty required per unit:2 blades required for 42" cut
Fits:42" (1067 mm) Cut pressed deck Victa LT 19.5/42 [V125] (19.5 hp model 2691005,
fitted with deck number 1696085, years 2012 to 2013, Note: after serial number
2014915223. Please note: there is more than one blade used on these models. These
models can be identified as having the spindle housing mounted on top of the deck),
NXT 19.5/42 [NXT19542, VXT19542] (19.5 hp model 2690919 fitted with deck number
1695927, years 2010 to 2014), SPX 20/42 [SPX2042] (20 hp models 2691152,
2691152-00, 2691152-01 and 2691152-02, year 2013), SPX 22/42 [SPX2242] (22 hp model
2691236-00, year 2014), SPX 23/42 [SPX2342] (23 hp model 2691235-00, year 2014),
V125 [LT 19.5/42] (19.5 hp model 2691005, fitted with deck number 1696085, years
2012 to 2013, Note: after serial number 2014915223) and V125 [23 /42] (23 hp model
2690917-01 Note: after serial number 2014915223 Please note: there is more than one
blade used on these models, both of these V125 models can be identified as having
the spindle housing mounted on top of the deck) ride-on lawn mower models and VZ285
[21 /42, ZTR285, 285ZTR] (21 hp model 7800823, years 2011 to 2013) and VZT 20/42
[VZT2042] (20 hp models 2691155 and 2691155-00, years 2013, 2014), VZT 22/42
[VZT2242] (22 hp models 2691379-00 and 2691379-01) zero turn radius (ZTR) ride-on
models.
Qty required per unit:2 blades required for 42" cut
Standard Pack Quantity:1
Please Note:All blade bars are sold as singles, order the quantity required to make up a set.
Brand:Craftsman Non-Genuine, Murray Non-Genuine, Parklander Non-Genuine, Simplicity
Non-Genuine, Snapper Non-Genuine, Victa Non-Genuine,
Product Line:Bar Blade, Blade - Bar, Ride-On Blade,
SKU BLR8368
Barcode # 9316596117222
Brand GA SPARES
