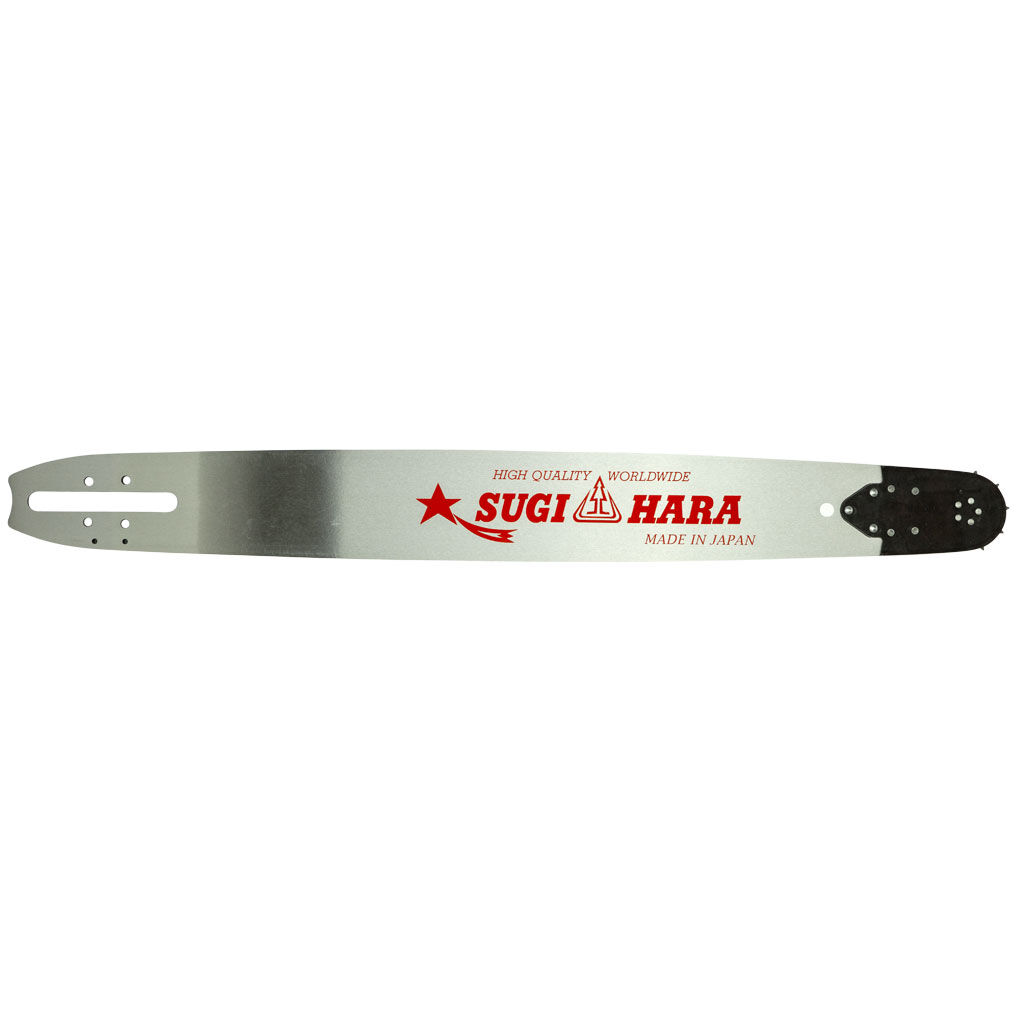

Description:PROKUT PLATINUM SUGIHARA 25" x .404" x .063" x 80 DL, DB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar - Made In Japan
Replaces OEM:Oregon 253RNFE099, 253RNFE031
Sugihara - Diatop SG6T-3S60-A
Replaces OEM:Oregon 253RNFE099, 253RNFE031
Sugihara - Diatop SG6T-3S60-A
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Features:Professional premium quality, solid, replaceable sprocket nose guide bar.
Manufactured from a single piece of steel, featuring superior durability and
stiffness characteristics.
High durability sprocket nose.
Polished lacquered finish.
Nose fastens with three rivets, and is securely held by wide and strong overlapping
ears.
The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body.
Super tough steel, heat treated up to 4 times on different parts of the guide bar,
provides superior bar-body strength and tough rails with excellent resistance to
wear and chipping.
PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
Made in Japan.
All PROKUT guide bars are reversible for longer life.
Length: (in):25"
Length: (in):25"
Length: (cm):60 cm
Pitch:.404"
Bar Type:PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type:53S / Semi-Chisel or 53F / Full-Chisel
Bar Mount Type:DB
Gauge:.063"
Drive Link Count:80
Teeth:10 Tooth Sprocket Nose
Recommended Saw Sizes:65 cc and larger (4.0 cu. in. and larger)
30, MS 880, MS 880 Magnum and S 10 model chainsaws.
Fits:STIHL 050, 051, 075, 076, 07 S, 070, 084, 088, 088 Magnum, 08 S, 08 S-EQ, 090 AV, E
30, MS 880, MS 880 Magnum and S 10 model chainsaws.
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF53S080DL or our full-chisel
chain loop part number GAF53F080DL .
nose guide bar,
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF53S080DL or our full-chisel
chain loop part number GAF53F080DL .
Brand:PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
Product Line:Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
SKU GAFDB2553RSP
Barcode # 9316596124893
Brand FORESTRY-G
