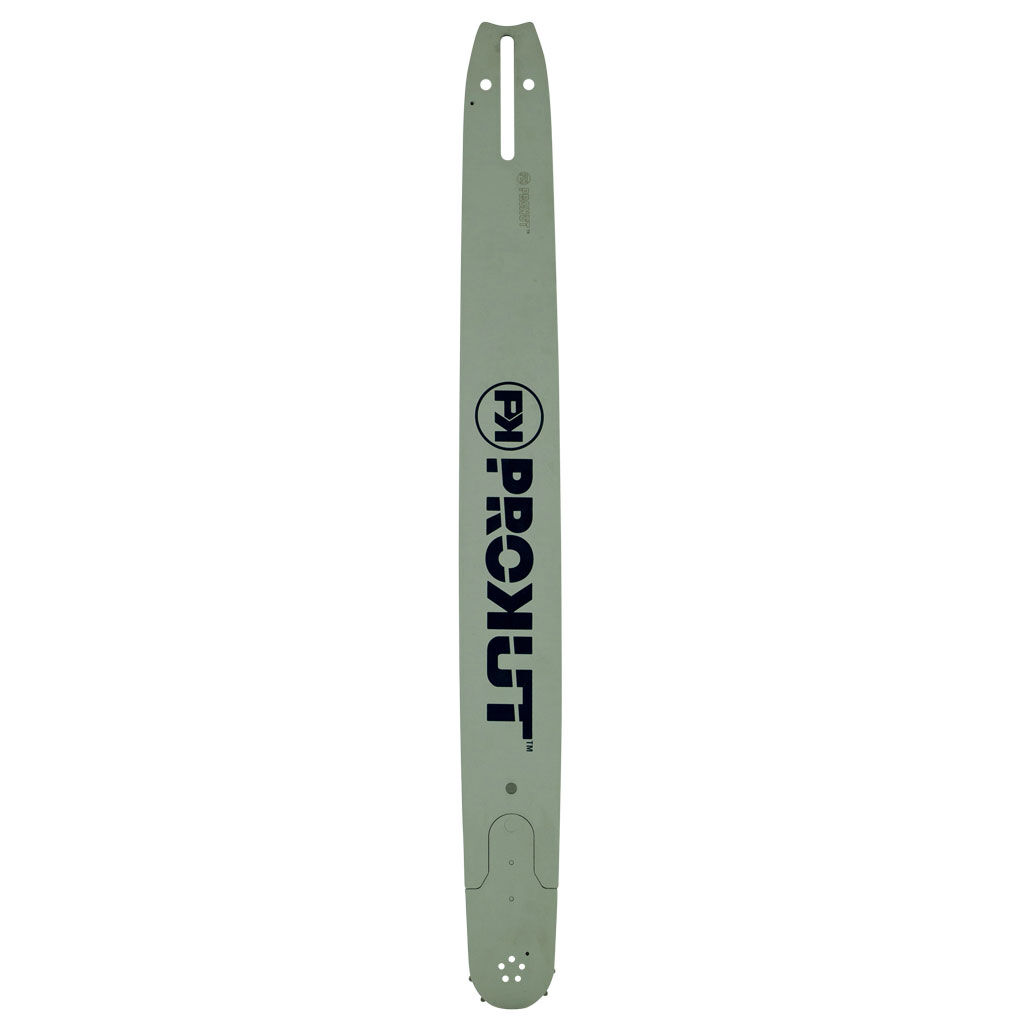

Description:PROKUT™ 20" x 3/8" x .050" x 70 DL, CH Mount, Solid Professional Replaceable
Sprocket Nose Guide Bar
Replaces OEM:OREGON® 200RNDD196
Replaces OEM:OREGON® 200RNDD196
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Features:• Solid professional replaceable sprocket nose guide bar
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Length: (in):20"
Length: (in):20"
Length: (cm):50 cm
Pitch:3/8"
Bar Type:Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type:40S / Semi-Chisel or 40F / Full-Chisel
Bar Mount Type:CH
Gauge:.050"
Drive Link Count:70
Teeth:11 Tooth sprocket nose
Recommended Saw Sizes:50 cc to 100 cc (3.0 to 6.0 cu. in.)
Fits:Echo CS-900, CS-900EVL and CS-1001 models.
750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO,
V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models.
Fits:Homelite 35SL, 330, 350, 350HG, 350SL, 360, 400, 410, 450, 460, 540, 550, 650, 700,
750, 800, 825, 850, 900, 922, 923, 8800, SUPER XL, SUPER XL-925, SUPER XL-AO,
V-955, XL-12, XL-15, XL-400, XL-700 SERIES, XL-800 SERIES, XL-900 SERIES models.
with a .404" pitch chain.
Fits:John Deere CS71 and CS81. Note: The "CH" bar tail slot (motor mount slot) must be
filed .020" (.00508 mm) for correct fitment.
.020" (.00508 mm) for correct fitment.
Fits:Jonsered 60, 61, 62, 66, 70, 75, 77, 80, 81, 90, 110, 111, 601, 621, 751, 801, 820,
830, 910, 920, 930, 939, 941, 1020 and 2350 models. Note: Please check your saw
carefully prior to ordering, some of the above saw models were also released fitted
with a .404" pitch chain.
Fits:Oleo-Mac 250, 250A, 251, 252, 254, 260, 261, 264, 355 and 460A SUPER models.
Fits:Oleo-Mac 48, 70, 264F, 272, 280, 284, 350, 355, 461, 480A SUPER, 970F, 980, 980F,
AGRISTAR, SUPER 482 NOTE: The "CH" bar tail slot (motor mount slot) must be filed
.020" (.00508 mm) for correct fitment.
Fits:Poulan / Poulan Pro 6900, 7700 and 8500 models. Note: Please check your saw
carefully prior to ordering, some of these saw models were also released fitted
with a .404" pitch chain.
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel
chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196
nose guide bar,
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF40S070DL or our full-chisel
chain loop part number GAF40F070DL. Replaces our part number OMK200RNDD196
Brand:PROKUT™, GA Forestry Accessories™
Product Line:Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
SKU GAFCH2040RS
Barcode # 9316596106592
