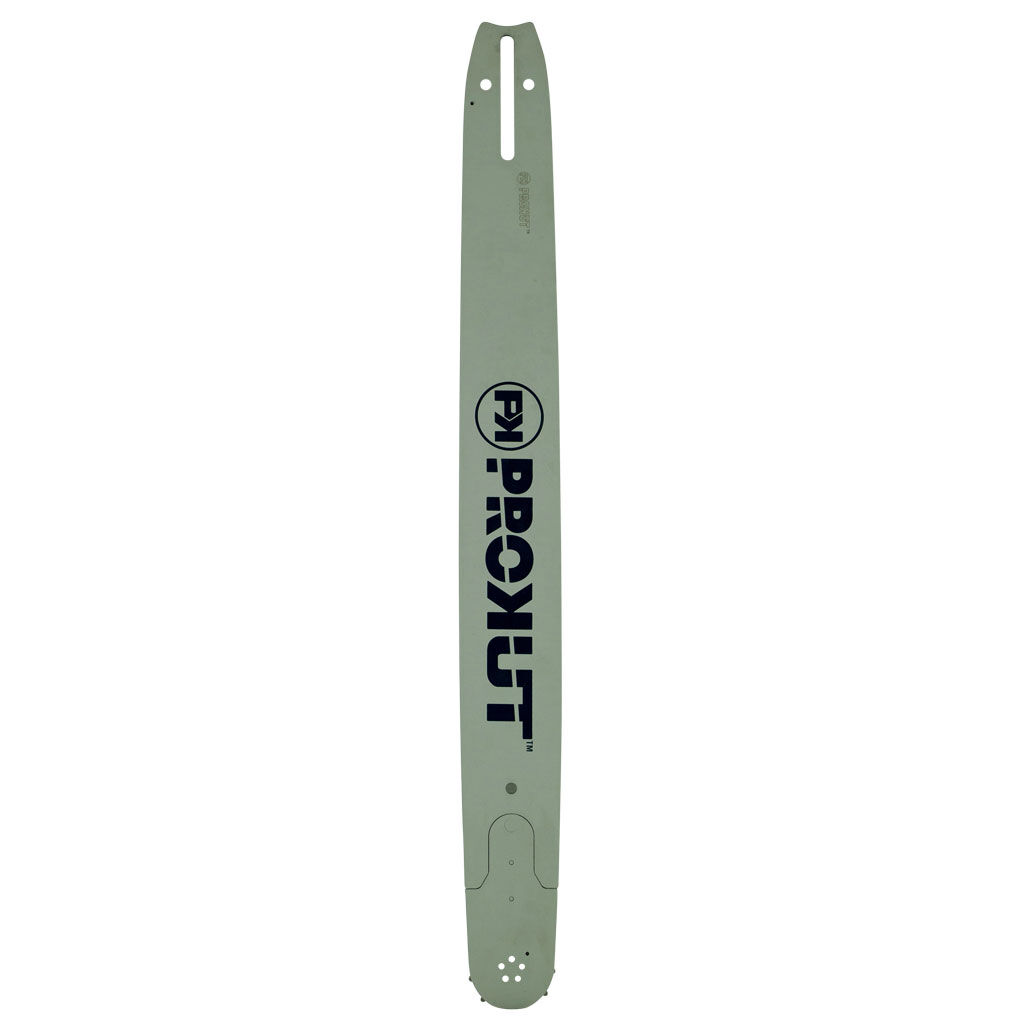

Description:PROKUT™ 28" x 3/8" x .063" x 92 DL Or 93 DL, CB Mount, Solid Professional
Replaceable Sprocket Nose Guide Bar
Replaces OEM:OREGON® 283RNDD009
Replaces OEM:OREGON® 283RNDD009
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Features:• Solid professional replaceable sprocket nose guide bar
• Nose fastens with a single rivet, and is securely held by wide and strong
overlapping ears
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
body
• Super tough chrome-moly steel provides superior bar-body strength and tough
rails with excellent resistance to wear and chipping
• All PROKUT™ guide bars are reversible for longer life
Length: (in):28"
Length: (in):28"
Length: (cm):70 cm
Pitch:3/8"
Bar Type:Solid Professional Replaceable Sprocket Nose Guide Bar
Chain / Cutter Type:43S / Semi-Chisel or 43F / Full-Chisel
Bar Mount Type:CB
Gauge:.063"
Drive Link Count:92 or 93 (as detailed above)
Teeth:11 Tooth sprocket nose
Recommended Saw Sizes:50 cc to 100 cc (3.0 to 6.0 cu. in.)
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a
93 drive link chain).
Fits:Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,
PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,
PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a
93 drive link chain).
2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models. (These
models use a 92 drive link chain).
Fits:Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,
371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,
390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,
570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,
2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models. (These
models use a 92 drive link chain).
Fits:Jonsered 670, 670 WEST COAST, 2083, 2083II, 2094 and 2095 models (These models use
a 92 drive link chain). Note: Please check your saw carefully prior to ordering,
some of the above saw models were also released fitted with a .404" pitch chain.
Fits:Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL. Note: Please
check your saw carefully prior to ordering, some of these saw models were also
released fitted with a .404" pitch chain. (These models use a 93 drive link chain).
Fits:Poulan / Poulan Pro 415, 425, 445, 475 and 505. (These models use a 93 drive link
chain). Note: Please check your saw carefully prior to ordering, some of these saw
models were also released fitted with a .404" pitch chain.
Fits:Shindaiwa 680, 695, 757, 757C and 757W models. (These models use a 93 drive link
chain).
Fits:Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 models. (These
models use a 93 drive link chain).
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF43S092DL or our full-chisel
chain loop part number GAF43F092DL for 92 drive link applications. Use with our
semi-chisel chain loop part number GAF43S093DL or our full-chisel chain loop part
number GAF43F093DL for 93 drive link applications.. For an .058" gauge version of
this guide bar use our part number GAFCB2848RS. Replaces our part number
OMK283RNDD009
nose guide bar,
Standard Pack Quantity:1
Please Note:Use with our semi-chisel chain loop part number GAF43S092DL or our full-chisel
chain loop part number GAF43F092DL for 92 drive link applications. Use with our
semi-chisel chain loop part number GAF43S093DL or our full-chisel chain loop part
number GAF43F093DL for 93 drive link applications.. For an .058" gauge version of
this guide bar use our part number GAFCB2848RS. Replaces our part number
OMK283RNDD009
Brand:PROKUT™, GA Forestry Accessories™
Product Line:Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
nose guide bar,
SKU GAFCB2843RS
Barcode # 9316596106776
Brand FORESTRY-G
