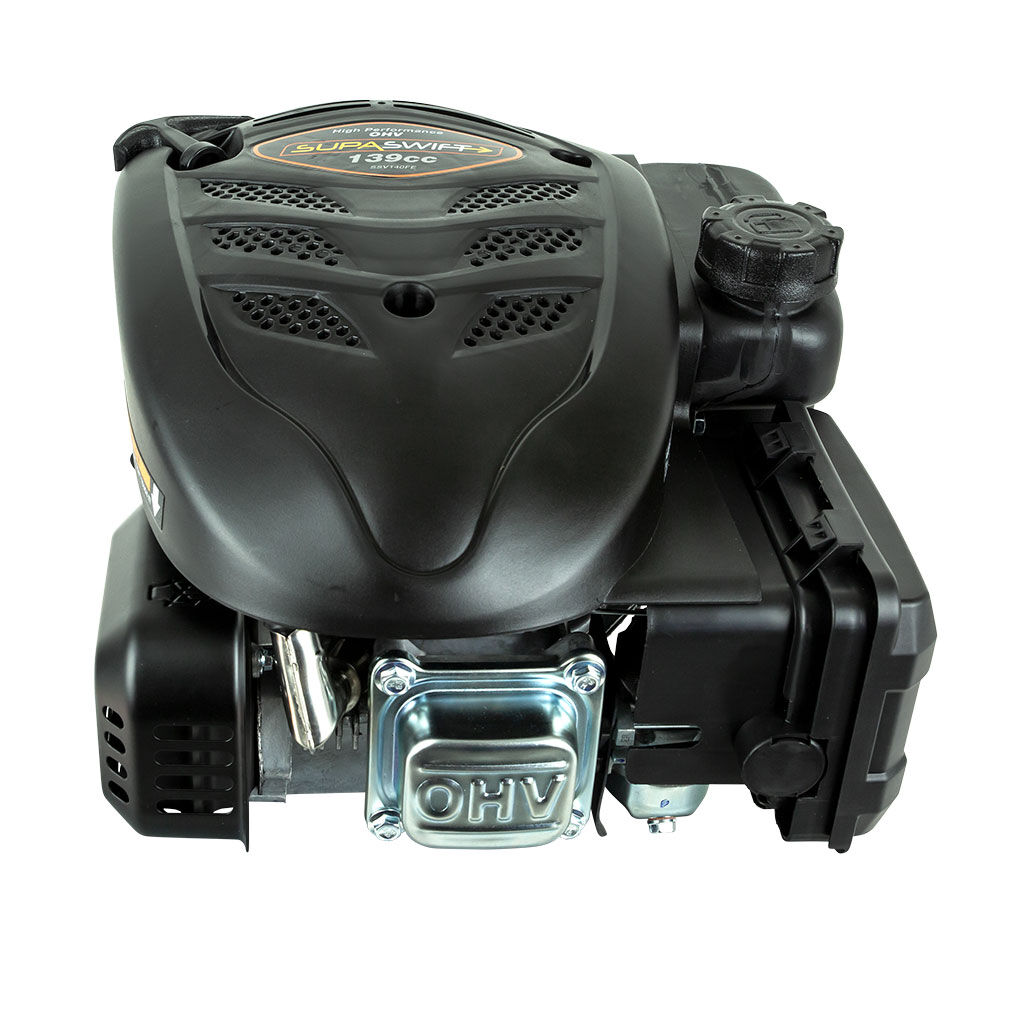

Description:SupaSwift SSV140FE, 2.7 kw, 139 cc Single Cylinder OHV Vertical Shaft Engine
Editorial:The SupaSwift SSV140FE is a quality small engine packed with premium features such
as a forged crankshaft. metal cam shaft with nylon gear, alloy cylinder liner, OHV
design and with proven reliabilty this engine is ready to be fitted to a variety of
out door power equipment including walk-behind lawn mowers, to provide years of
trouble free service.
Warranty:3 years domestic, 3 months commercial. For further details on our warranty terms
and conditions including all limitations and exclusions please refer to the
warranty section on our web site or contact our friendly sales team.
Features:Alloy cylinder liner.
Forged crankshaft.
Metal camshaft with nylon gear.
OHV design.
Auto choke.
Lightweight.
Dual stage air filter, pleated paper with foam pre-filter.
Proven reliability
Conforms to Euro 5.
Engine:SupaSwift SSV140FE.
Type:Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
engine.
Displacement:139 cc.
Bore x Stroke:65 mm x 42 mm.
Cylinder:Single cylinder, with alloy cylinder liner.
Compression Ratio:8.5:1.
Net Power:2.7 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
Net Torque:7.0 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
Engine (cc):139 cc
Crankshaft:Forged crankshaft
Crankshaft Diameter: (inches)7/8"
Crankshaft Diameter: (mm)22.22 mm
PTO Shaft Type:7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key.
PTO Shaft Rotation:Anti-clockwise (from the PTO side)
Cooling:Air cooled.
Governor:Centrifugal mass type.
Carburettor:Butterfly type.
Choke:Auto choke.
Idle Speed:1800 ± 150 rpm / min.
Starter:Recoil Start.
Ignition:Transistorised Magneto Ignition.
Lubrication:Splash.
Oil Capacity:550 ml (please use SAE10W/40 oil).
Fuel:Unleaded
Fuel Capacity:0.9 Litre
Fuel Filter:Yes, In-tank type fuel filter.
Air Filter:Pleated paper type with foam pre-filter.
Exhaust/Muffler:Yes
Dry Weight: (lb)18.73 lb.
Dry Weight: (kg)8.5 kg
International Standard:Conforms to EU5
Standard Pack Quantity:1
Please Note:Specifications subject to change without notice. The power rating of this engine is
the net power output tested on a production engine and measured in accordance with
SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
Brand:SupaSwift,
Product Line:Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,
SKU ENG8390
Barcode # 9316596117406
Brand LONCIN
