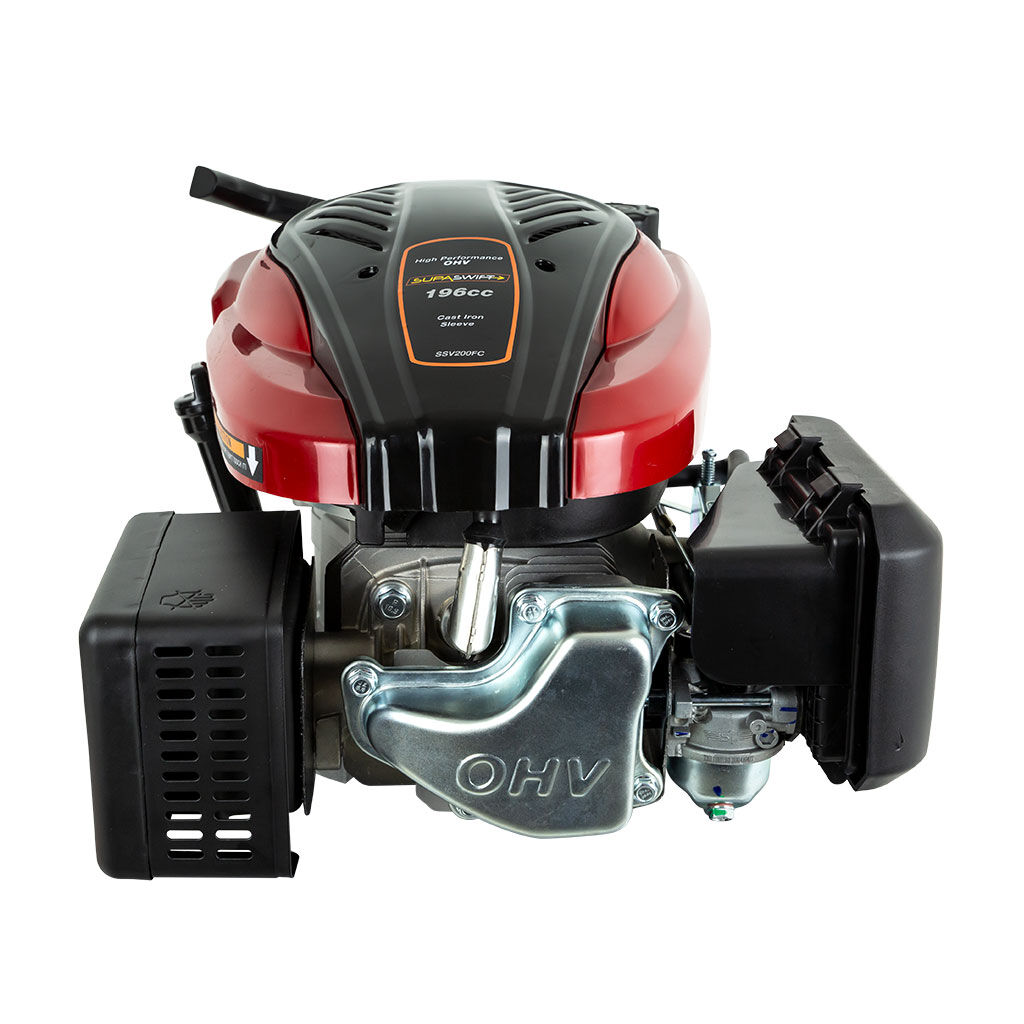

Description:SupaSwift SSV200FC, 3.5 kw, 196 cc Single Cylinder OHV Vertical Shaft Engine
Editorial:The SupaSwift SSV200FC is a quality small engine packed with premium features such
as a forged crankshaft, metal cam shaft with nylon gear, cast iron cylinder liner,
OHV design and with proven reliability this engine is ready to be fitted to a
variety of outdoor power equipment to provide years of trouble free service.
Warranty:3 years domestic, 3 months commercial. For further details on our warranty terms
and conditions including all limitations and exclusions please refer to the
warranty section on our web site or contact our friendly sales team.
Features:Cast-Iron cylinder liner.
Forged crankshaft.
Metal camshaft with nylon gear.
OHV design.
Auto choke.
Dual stage air filter.
Proven reliability.
Conforms to Euro 5.
Engine:SupaSwift SSV200FC.
Type:Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
engine.
Displacement:196 cc.
Bore x Stroke:70 mm x 51 mm.
Cylinder:Single cylinder with cast -iron cylinder liner.
Compression Ratio:7.1 :1
Net Power:3.5 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
Net Torque:10.5 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
Engine (cc):196 cc
Crankshaft:Forged crankshaft
Crankshaft Diameter: (inches)7/8"
Crankshaft Diameter: (mm)22.22 mm
PTO Shaft Type:7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key.
PTO Shaft Rotation:Anti-clockwise (from the PTO side)
Cooling:Air cooled
Governor:Centrifugal mass type.
Carburettor:Butterfly type.
Choke:Auto choke.
Idle Speed:2200 ± 150 rpm / min.
Starter:Recoil Start.
Ignition:Transistorised Magneto Ignition.
Lubrication:Splash.
Oil Capacity:600 ml (please use 10W/40 oil)
Fuel:Unleaded
Fuel Capacity:1.0 Litre
Fuel Filter:Yes, In-tank fuel filter.
Air Filter:Pleated paper cartridge type with a foam pre-filter.
Exhaust/Muffler:Yes, muffler and heat shield supplied.
Dry Weight: (lb)28.21 lb.
Dry Weight: (kg)12.8 kg
International Standard:Conforms to EU5
Standard Pack Quantity:1
Please Note:Specifications subject to change without notice. The power rating of this engine is
the net power output tested on a production engine and measured in accordance with
SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
Brand:SupaSwift,
Product Line:Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,
SKU ENG8386
Barcode # 9316596117383
Brand LONCIN
