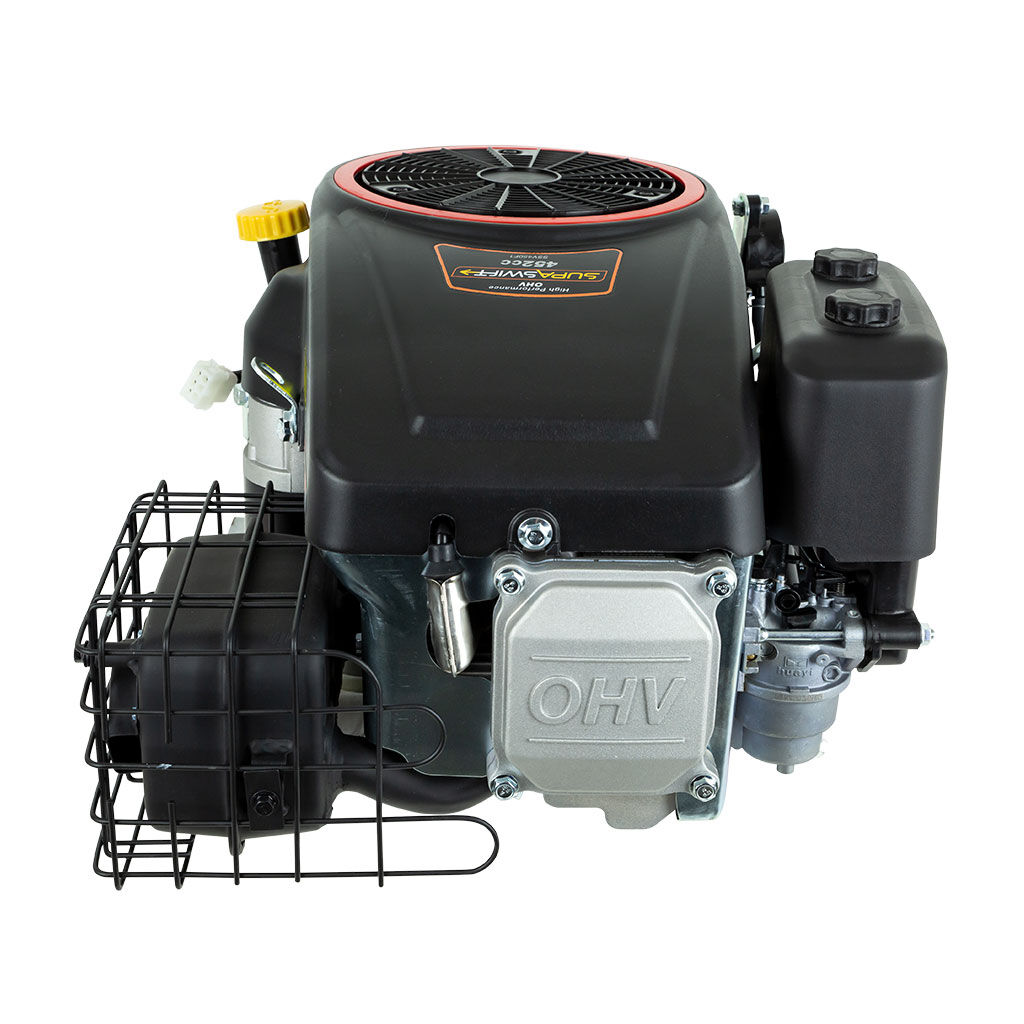

Description:SupaSwift SSV450F1, 9.5 kw, 452 cc Single Cylinder OHV Vertical Shaft Engine
Editorial:The SupaSwift SSV450F1 is a durable and reliable 9.5 kW single cylinder OHV engine
suitable for a variety of outdoor power equipment including ride-on lawn mowers.
With premium features such as a forged crankshaft. metal cam shaft, cast iron
cylinder liner, OHV design and an oil filter this engine is ready to provide many
years of trouble free service.
Warranty:3 years domestic, 3 months commercial. For further details on our warranty terms
and conditions including all limitations and exclusions please refer to the
warranty section on our web site or contact our friendly sales team.
Features:Cast-Iron cylinder sleeve.
Forged and carefully balanced crankshaft.
Metal camshaft.
OHV design.
Oil filter.
Proven reliability.
Conforms to Euro 5 Standards.
Suitable for ride-on mowers.
Engine:SupaSwift SSV450F1 (V450-F1).
Type:Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
engine.
Displacement:452 cc.
Bore x Stroke:92mm x 68mm.
Cylinder:Single cylinder with cast -iron cylinder sleeve.
Compression Ratio:8.7 : 1.
Net Power:9.5 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
Net Torque:28 Nm @ 2600 rpm. (Measured in accordance with SAE J1349)
Engine (cc):452 cc.
Crankshaft:Forged crankshaft.
Crankshaft Diameter: (inches)1"
Crankshaft Diameter: (mm)25.4 mm
PTO Shaft Type:1", (25.4 mm) diameter, 3.13" (79.5 mm) long, with parralel keyway.
PTO Shaft Rotation:Anti-clockwise (from the PTO side).
Cooling:Air cooled.
Governor:Centrifugal mass type.
Carburettor:Butterfly type.
Choke:Manual
Idle Speed:1850 ± 150rpm / min
Starter:Electric start.
Ignition:Transistorised magneto ignition.
Lubrication:Splash and pressure lubrication system.
Oil Filter:Yes
Oil Capacity:1.2 Litres (Please use 10W/40 Oil).
Fuel:Unleaded (minimum of 90 octane)
Fuel Filter:Yes (Inline type fuel filter).
Air Filter:Pleated paper cartridge type with foam wrap pre-filter.
Exhaust/Muffler:Yes, includes muffler and guard.
Dry Weight: (lb)68.34 lb.
Dry Weight: (kg)31 kg
International Standard:Conforms to EU5.
Standard Pack Quantity:1
Please Note:Specifications subject to change without notice. The power rating of this engine is
the net power output tested on a production engine and measured in accordance with
SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque). Please Note:
This engine does not come with a fuel tank.
Brand:SupaSwift,
Product Line:Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,
SKU ENG8380
Barcode # 9316596117376
Brand LONCIN
